Krab 11: Geometry Analysis Software

Krab 11 geometry analysis software is included with the Krab series of trolleys provides all of the required functionality to take your track geometry, rail wear, restraining rail and track image data from raw field results to final reports.

Key features of Krab 11 include:

  • + A user-customisable interface that allows for the synchronized display of track maps, track images, geometry graphs and rail wear graphs
  • + Ability to dock windows as well as spread windows across multiple displays to assist the user in data review, analysis and reporting
  • + Multi-language support including English, French, Spanish, Portuguese, Chinese and more
  • + Full control over the filters applied to geometry data
  • + Full control over geometry limits
  • + Ability to save your settings as a template to reuse for future reporting
  • + CSV, XLS, PDF, JPEG outputs

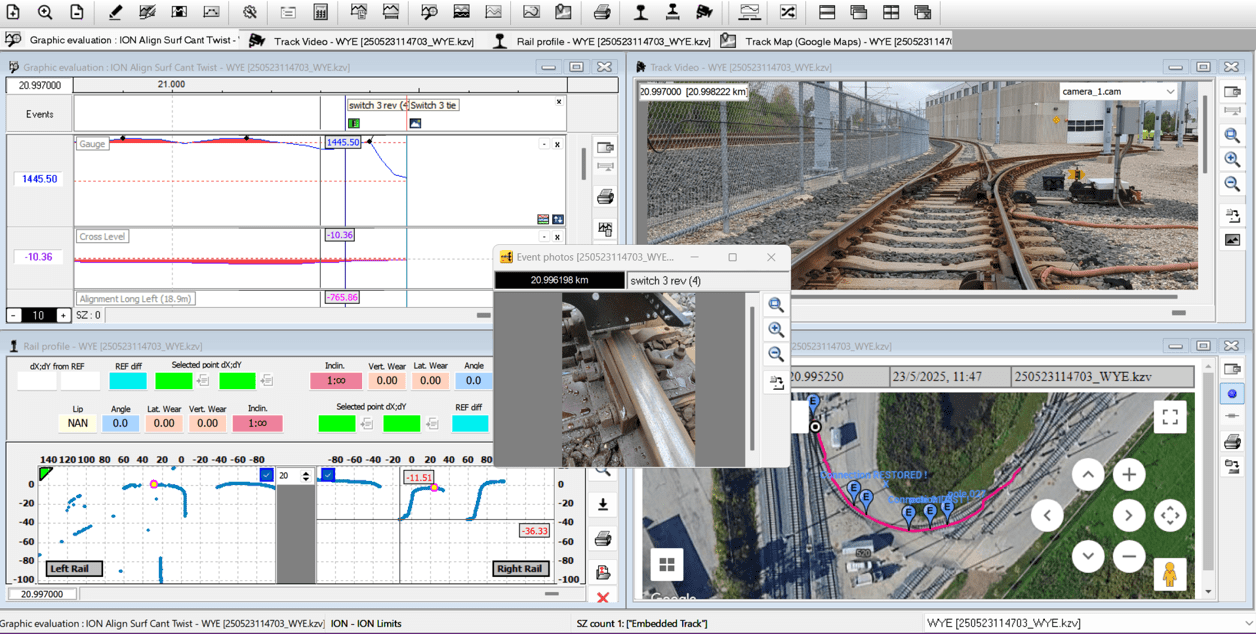

Track geometry analysis software
Krab 11 Office Data Analysis and Reporting Software

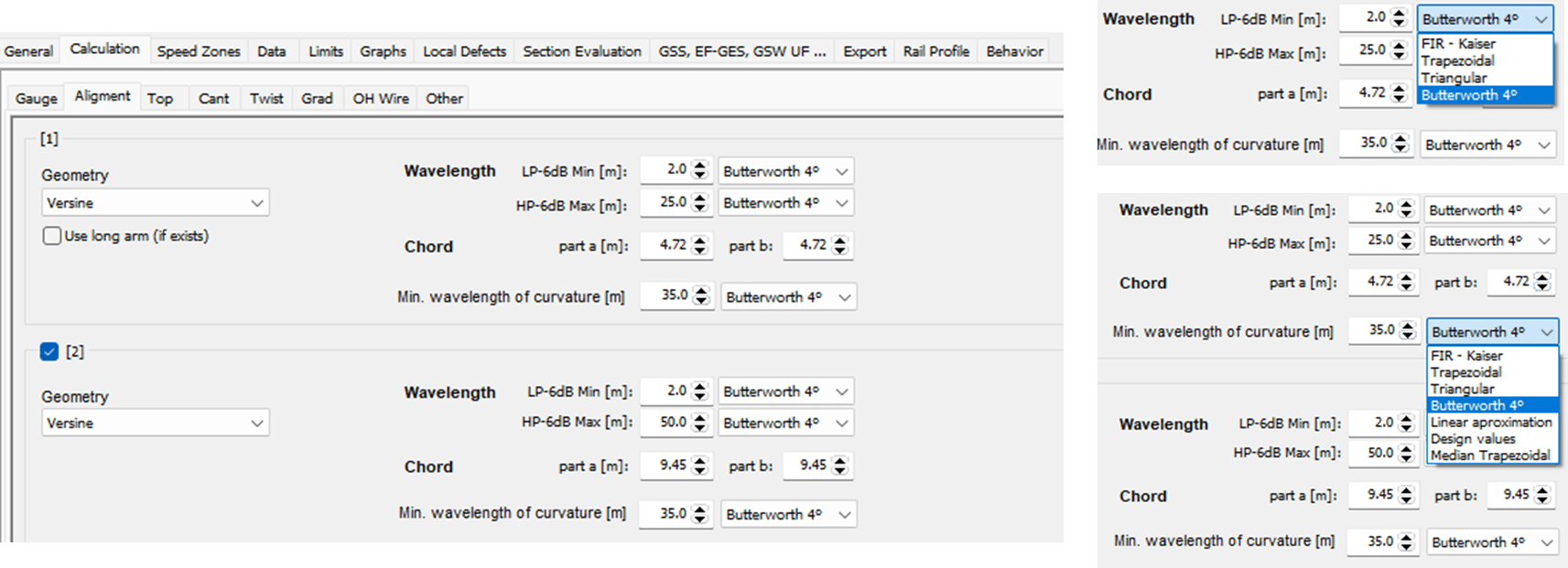

Geometry filter settings screen
Full Control Over Geometry Filters

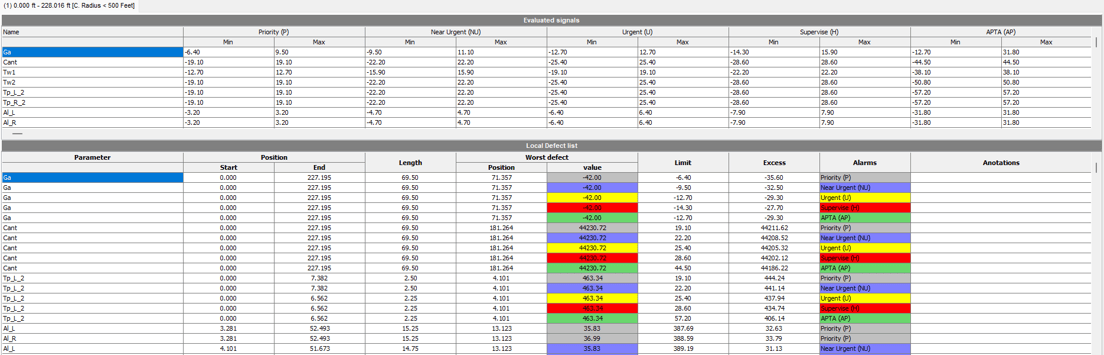

Geometry defect report table
Custom Geometry Limits and Reporting
