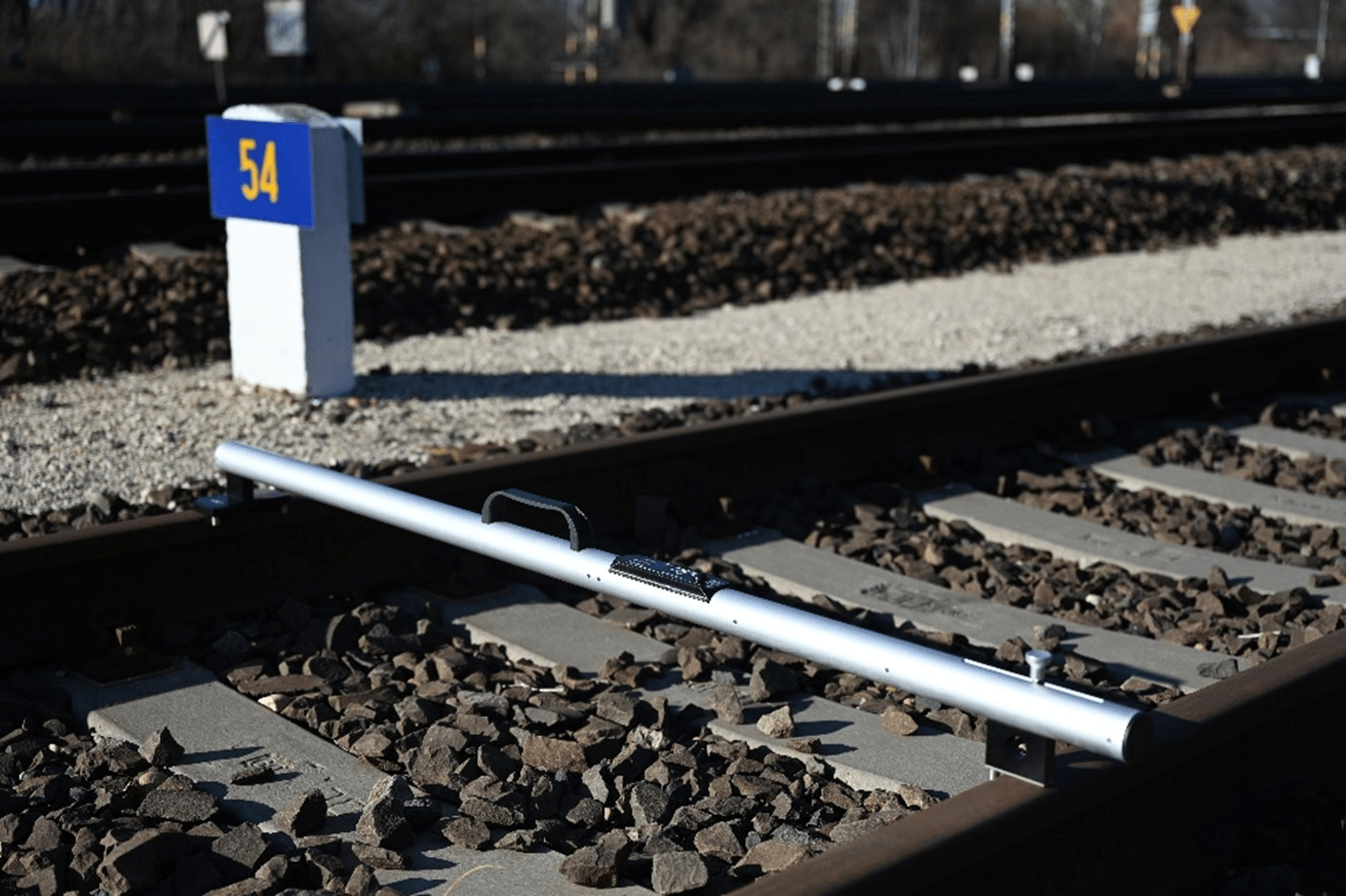

DIVA Track Gauge
Looking for a fast, accurate, and highly portable, way to perform geometry spot checks? The DIVA digital track gauge is your solution.
Weighing just 3.3kg and with a much wider operating range than the competition, the DIVA is designed to work when you work without wearing you out. The thoughtful field-swappable battery design means no more “oops I forgot to charge it” moments in the field.

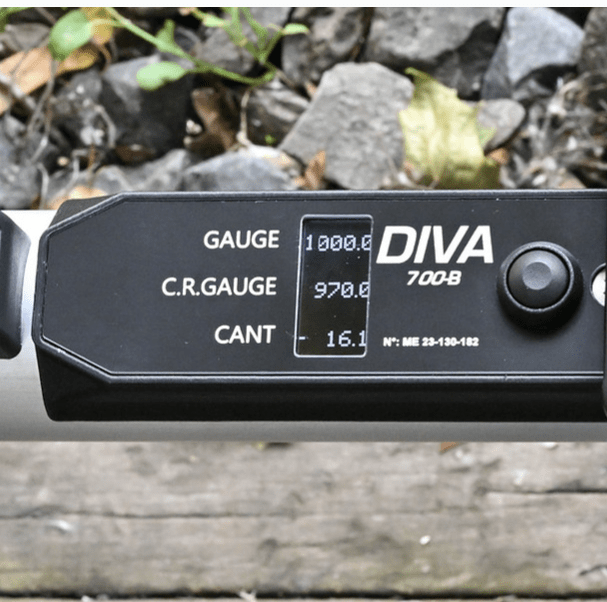

The base model has an integrated OLED display that is easily visible in full sunlight as well as during an overnight engineering window. However it can also be upgraded to allow display and measurement storage on a linked Android phone.
Key Specifications
Key specifications for the DIVA:
- + Measurements provided: cant, gauge, check rail gauge, guard check gauge and guard face gauge (metric units)
- + Accuracy: Gauge, flangeway width and check rail gauge measurements are accurate to +/-0.5mm and cant is accurate to +/-0.3mm.
- + Operating temperature range: -20°C to +45°C
- + Electrical isolation: Electrically insulated from the track circuit
- + Weight: 3.3kg
- + Power supply: 10 hour field-swappable battery
- + Supported languages: English
- + Warranty: 12 months
Video Demonstration
Click on the video below for a brief demonstration.
The Support that You Need
If you’re considering purchasing measuring equipment from a generalist railway supplier with hundreds or thousands of unrelated SKUs you might want to think twice. Make sure that your supplier has the knowledge and experience to show you how to properly use the equipment in the field as well as work with data in the office.
Request Pricing
PrecisionTrack Inspection is Metalelektro’s exclusive distributor for Canada and the United States. Please use the button below to request a quote or a meeting to review your needs in more detail.
